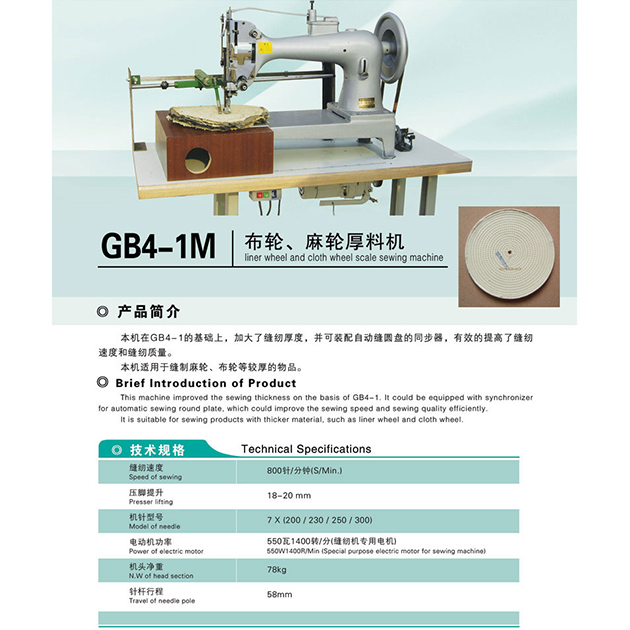

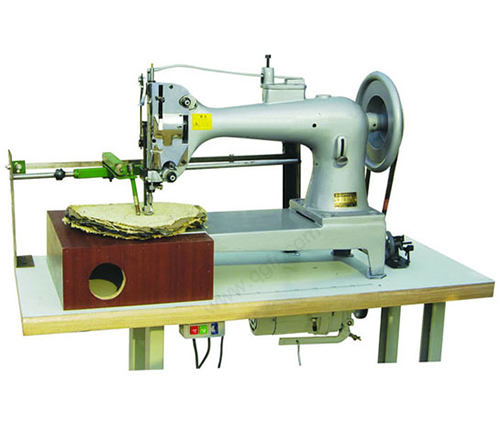

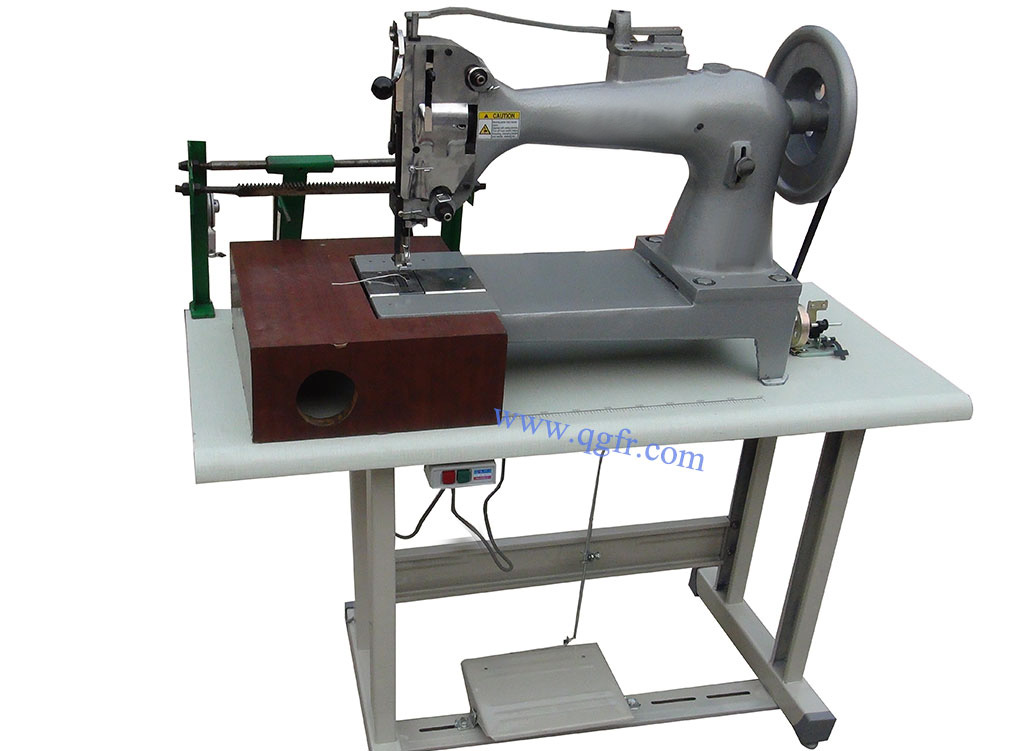

GB4-1M Linen Wheel Sewing Machine
product description

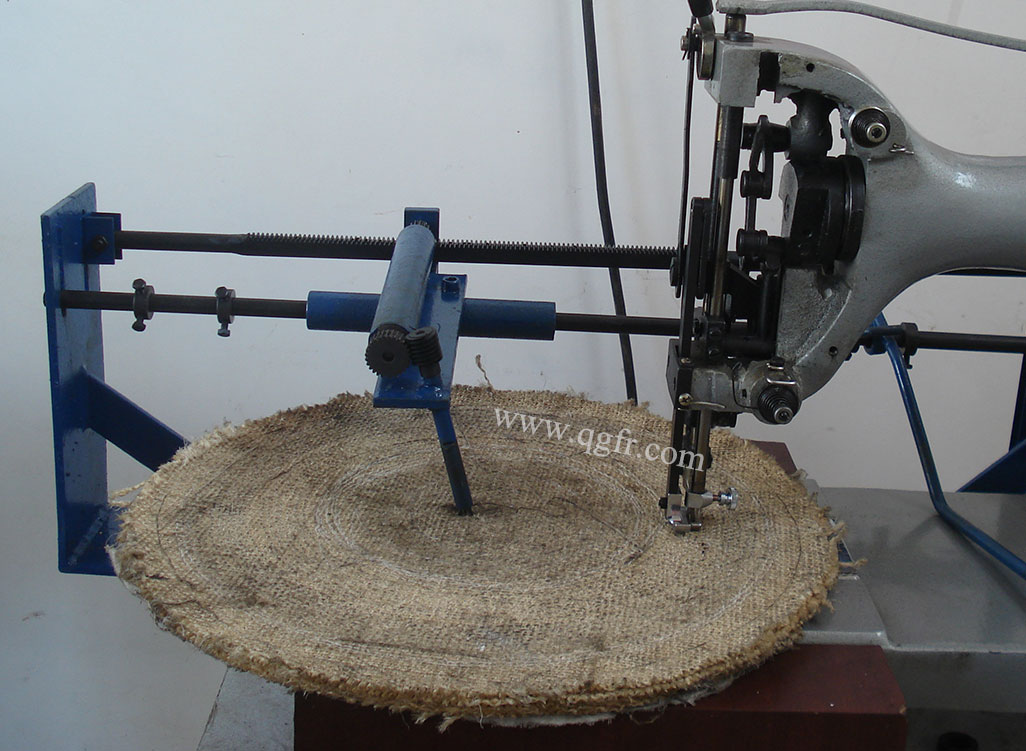

GB4-1M Linen Wheel Sewing Machine: adopts single needle oscillating shuttle to form lockstitch. The maximum sewing thickness can be 25 mm. Patent oversize oscillating shuttle is incorporated. It could be equipped with synchronizer for automatic sewing round plate, which could improve the sewing speed and sewing quality efficiently.
It is suitable for sewing products with very thick material, such as linen wheel and cloth wheel.
Max.Sewing Speed: 800/min;
Stitch length: 12mm;
Presser food lift: 30mm;
Operating space: 200×420mm;
Needle size: GV2, 110-280mm;
Electric motor power: 550W, 1400r/min;
Net weight of machine head: 78kg;
Shuttle hook: SEIKO HSH-7-3
It is suitable for sewing products with very thick material, such as linen wheel and cloth wheel.
Max.Sewing Speed: 800/min;
Stitch length: 12mm;
Presser food lift: 30mm;
Operating space: 200×420mm;
Needle size: GV2, 110-280mm;
Electric motor power: 550W, 1400r/min;
Net weight of machine head: 78kg;
Shuttle hook: SEIKO HSH-7-3
