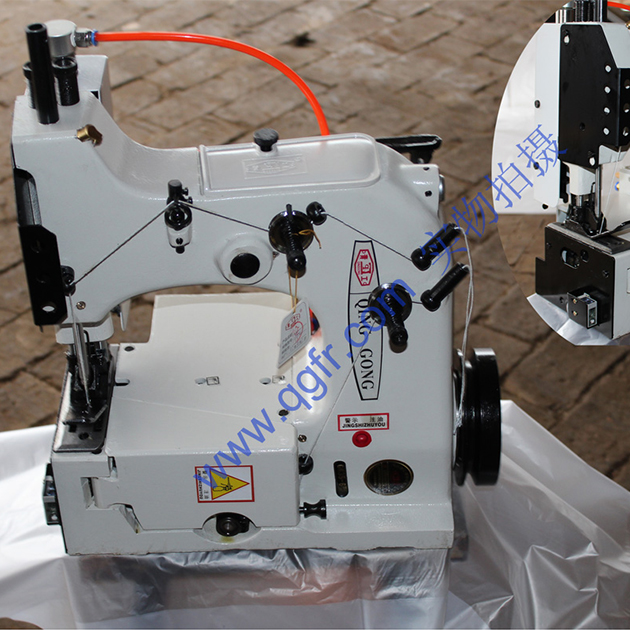

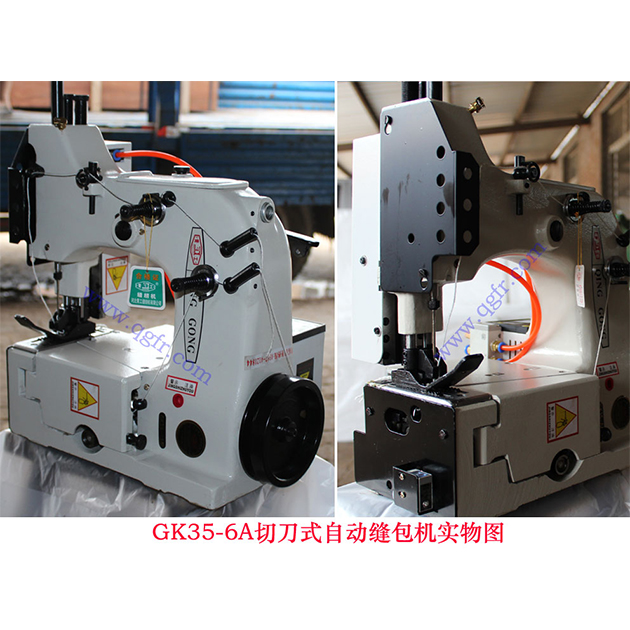

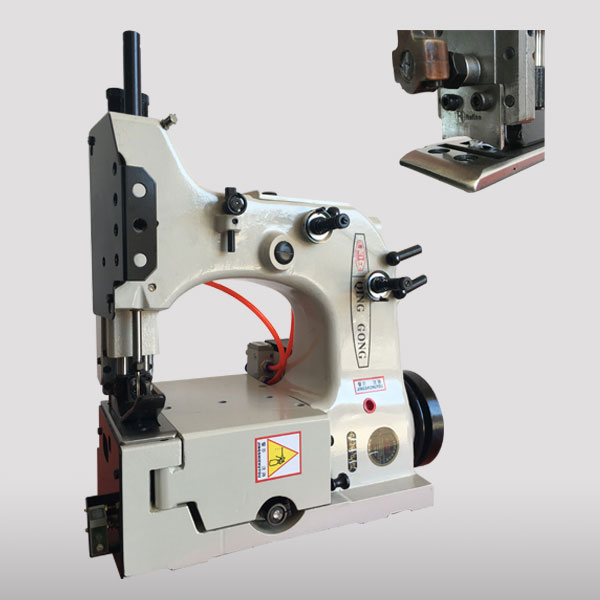

GK35-6A Automatic Bag Closing Machine
product description
GK35-6A Automatic Bag Closing Machine: Automatic single needle machine for both plain and crepe-tape bound closing of all kinds of filled bags. The machine will start automatically by photoswitch actuated by the bag being fed into the machine. In the same way, the machine stops after the bag passes through, and at the same time the thread/crepe-tape is cut automatically by built-in air cylinder operated guillotine type cutter.
1. Start-stop: automatically by photoswitch

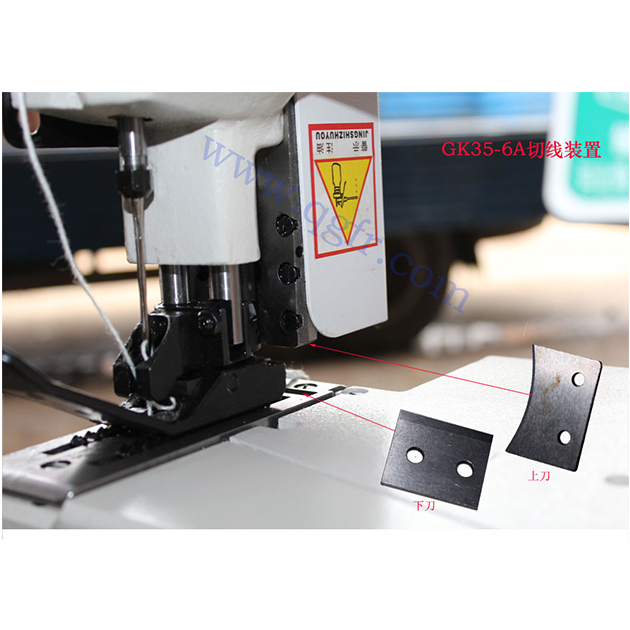

2. Thread chain cutter: automatically by air cylinder operated guillotine type cutter
3. Stitch length: adjustable from 6.5-11 mm, standard setting 8 mm
4. Standard needle: 80800 x 250#
5. Speed: up to 2000 RPM, depending on sewing material and operation
6. Net weight: 35Kg
7. Tape folder: adjustable for 50-70 mm wide tape(selected or not)

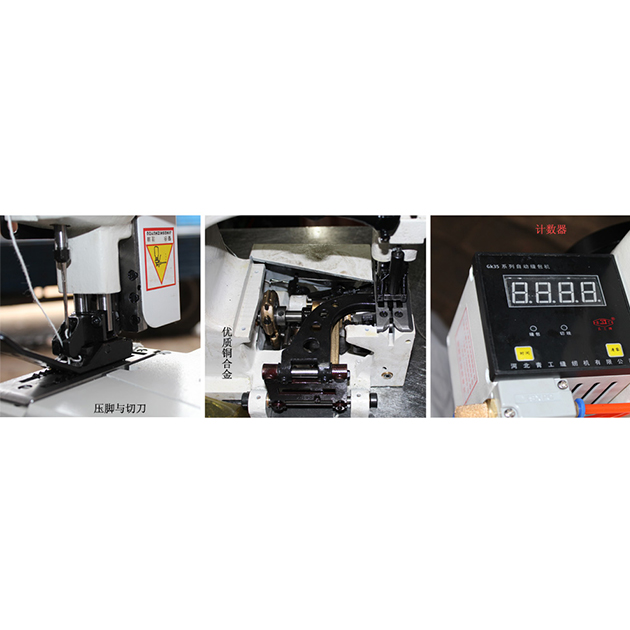

8. auto count bags number
1. Start-stop: automatically by photoswitch
2. Thread chain cutter: automatically by air cylinder operated guillotine type cutter
3. Stitch length: adjustable from 6.5-11 mm, standard setting 8 mm
4. Standard needle: 80800 x 250#
5. Speed: up to 2000 RPM, depending on sewing material and operation
6. Net weight: 35Kg
7. Tape folder: adjustable for 50-70 mm wide tape(selected or not)
8. auto count bags number
Technical Parameters
| Speed (max.) | 2000r.p.m. |
| Sewing thickness | 8mm |
| Stitch length | 6.5-11mm |
| Presser foot lift | 11-16mm |
| Stitch type | double threads chain 401 |
| Thread | cotton, polyester 21S/5,21S/3 |
| Needle type | 80800C×250# |
| Pulley diameter | Φ114mm |
| Net weight | about 35KGS |
| Dimension | 50cm * 50cm * 33cm |
